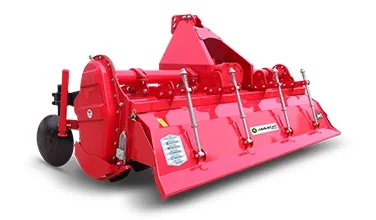

ROTAVATOR H2
Designed for general soil preparation, it features heavy duty multi-speed gearbox with 13x23 Crown Pinion, efficiently mixing and removing crop residues, pulverizing & levelling the soil in typical field conditions.
Salient Features & Benefits:
- Robust main frame with a double pipe structure for extra strength.
- 4 number of damper springs in 7 & 8 feet variants
Size (in feet) | 5 | 5.5 | 6 | 6.5 | 7 | 7.5 | 8 |
---|---|---|---|---|---|---|---|
Working Width (mm) | 1424 | 1585 | 1805 | 1805 | 2000 | 2000 | 2205 |
No. of Blades | 36 | 42 | 42 | 48 | 48 | 54 | 60 |
Type of Blades | L Type |
Also Available in H3, O2, O3 Variants (4–10 feet)

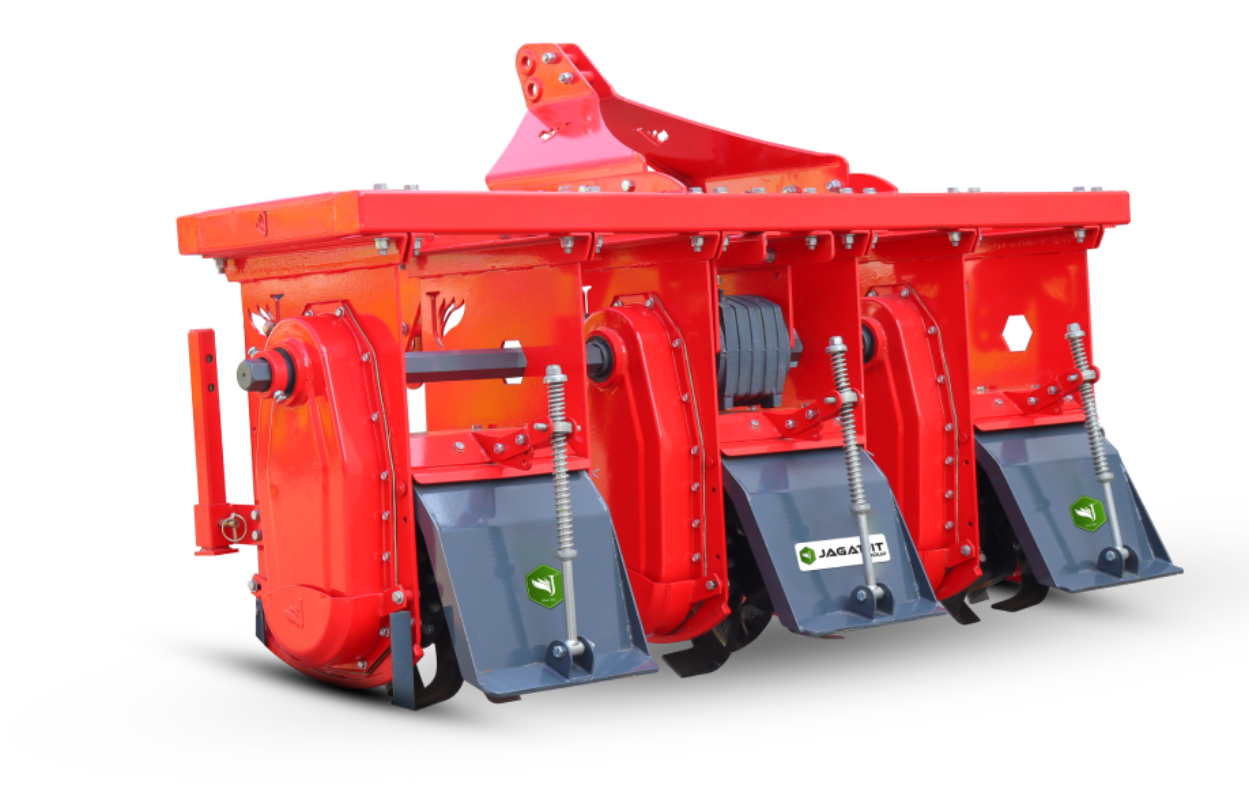

INTER ROW WEEDER
The Jagatjit inter-row weeder effectively removes weeds from crops like corn, sugarcane, & cotton, reducing labour requirements by 70–80% for a cost-effective and efficient farming solution.
Salient Features & Benefits:
- Saves time and labour costs, streamlines the harvesting process.
- Rigid Gearbox with EN353 grade gear material.
Model | Intra 303 |
---|---|
Length (mm) | 931 |
Width (mm) | 2275 |
Height (mm) | 1272 |
Working Width (mm) | 400 |

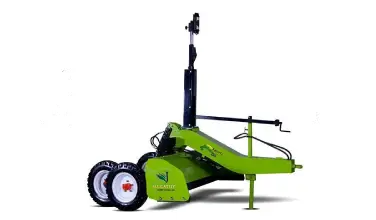

LASER LAND LEVELLER
The Jagatjit Laser Land Leveller is a precision agricultural tool designed to optimize the use of groundwater for irrigation. This equipment not only conserves water but also helps farmers save time and electricity. Additionally, it enhances the efficient use of other agricultural inputs such as fertilizers, insecticides, and pesticides, promoting overall resource efficiency.
Salient Features & Benefits:
- Effective for depleting ground water levels.
- Reduces fuel and electricity consumption for irrigation.
Specification | Dragon & Dragon Fire | Dragon Plus |
---|---|---|
Size (in feet) | 7 |
8
(7 ft extendable to 9 ft with kit) |
Working Width (mm) | 2134 |
2434
(extends to 3044 mm with kit) |
With Jagatjit System |
SUPER SEEDER
Jagler-EX, a tractor PTO operated implement that helps preparing a paddy harvested field for sowing in one single pass. It helps removing the paddy stubbles, incorporating into the soil, preparing the land and sowing.
Salient Features & Benefits:
- Available in sizes between 6 to 10 feet
- Equipped with stainless steel discs
Size (in feet) | 6 | 7 | 8 | 9 | 10 |
---|---|---|---|---|---|
Working Width (mm) | 1905 | 2100 | 2490 | 2685 | 3035 |
Tractor Power (hp) | 45–50 | 50–55 | 55–60 | 60–70 | 70 & Above |
No. of Blades | 48 | 54 | 60 | 66 | 72 |
Type of Blades | LJF Type |

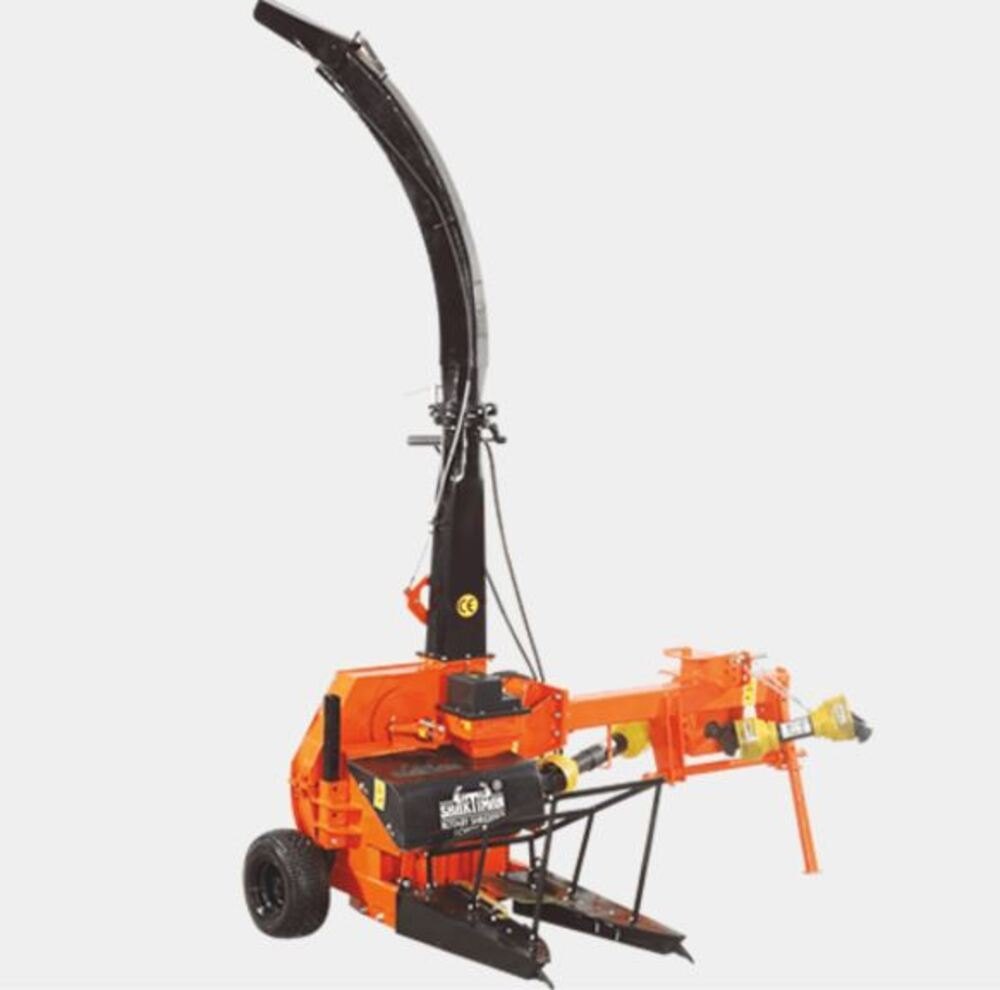

MOBILE SHREDDER
Jagler-EX, a tractor PTO operated implement that helps preparing a paddy harvested field for sowing in one single pass. It helps removing the paddy stubbles, incorporating into the soil, preparing the land and sowing.
Salient Features & Benefits:
- Blades made of EN-353 steel for enhanced durability
- In-built blade sharpening system that allows sharpening of blades without dismantling
Type | Single Row |
---|---|
Prime Mover | Tractor |
Cutting Knives | 2 |
L × W × H (mm) | 2510 × 2340 × 3183 |
No. of Blades | 12 |

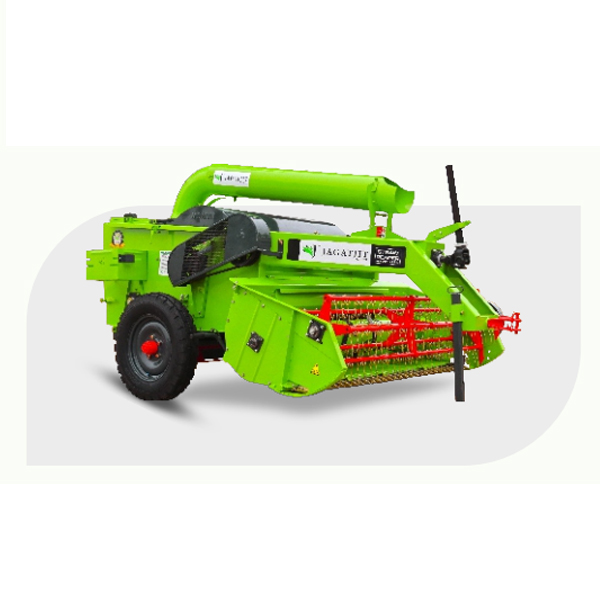

STRAW REAPER
Best suitable for reaping of standing wheat stubbles & collecting the bruised straw in a trolley. Straw collected is used as an animal feed.
Salient Features & Benefits:
- 360 degree rotating chute fabricated from HRC
- Pentagonal fabricated pickup reel for improved & reliable functionality & efficiency
Size (inches) | 57 | 60 | 63 |
---|---|---|---|
Cutter Bar Size (in feet) | 7.5 | 7.5 | 8.5 |
Thresher Blades | 288 | 320 | 320 |
Working Width (mm) | 2230 | 2230 | 2535 |

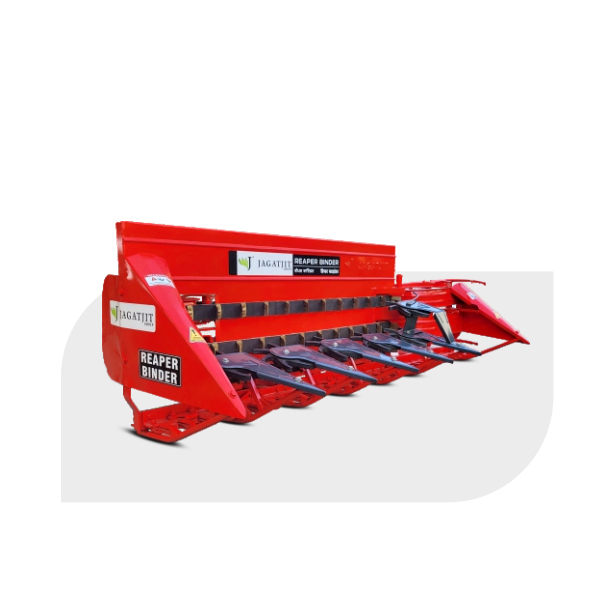

REAPER BINDER
Jagatjit Reaper Binder is a Tractor PTO operated implement best suitable for reaping and binding of crops like wheat and barley.
Salient Features & Benefits:
- Rigid Gearbox with En353 grade gear material.
- Saves time and labour costs, streamlines the harvesting process.
Model | JRBFTA |
---|---|
L x W x H (mm) | 1530 x 2500 x 700 |
Weight (Approx. kg) | 650 |
No. of Blades | 30 |
No. of Fingers | 15 |

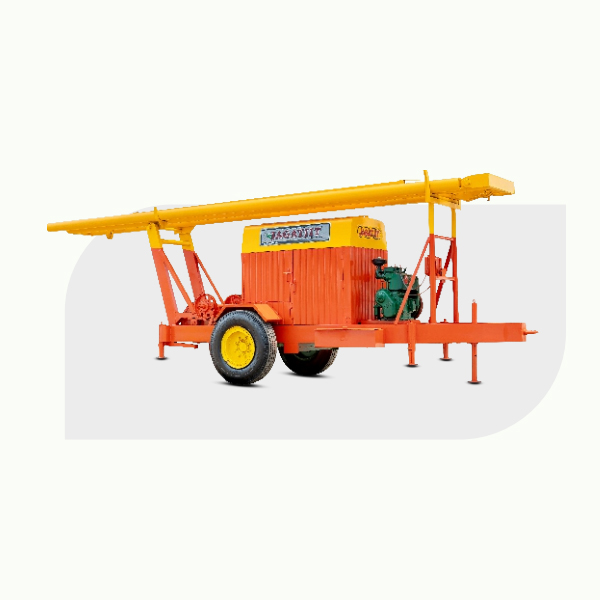

BORING MACHINE
The high stroke assembled machine is used to drill the earth for getting water lying at different depths.
Salient Features & Benefits:
- Readily available groundwater
- Able to irrigate a much larger area
- Suitable for small holdings
Size(inches) | 6 | 8 | 10 | 12 |
---|---|---|---|---|
Boring Depth (in feet) | 400 | 600 | 800 | 1000 |
Mast (Tirpai) | 4' × 22' | 6' × 22' | 6' × 22' | 7' × 22' |
Engine Power (hp) | 10–12 | 12–14 | 16–24 | 24 |
Mode | With Clutch and Gear |

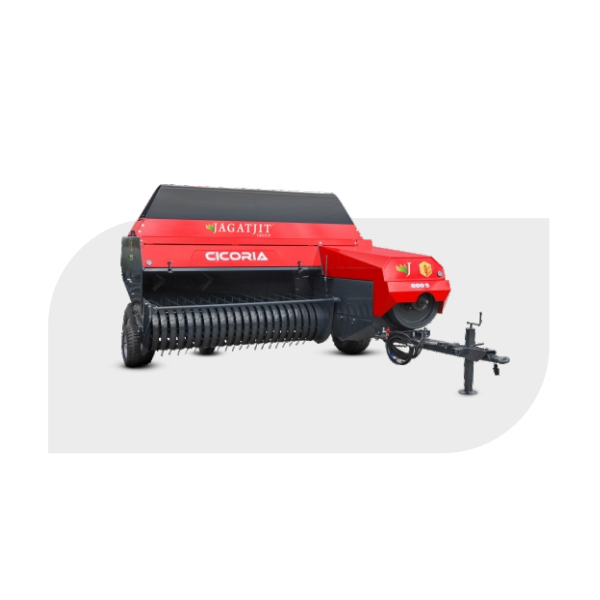

SQUARE BALER
The Jagatjit Cicoria Square Baler, featuring advanced Italian technology, is the pinnacle of modern farming equipment. This strong and reliable baler delivers high-density bales in the most challenging environments, offering trouble-free operation and low maintenance.
Salient Features & Benefits:
- Extra Long Piston Stroke
- Best in class knotter mechanism
Strokes/minute (n/min) | 90 |
Stroke Length (cm) | 95 |
No. of Knotters | 2 |
Weight of Bale (kg) | 25–50 |
Weight of Baler (kg) | 1670 |

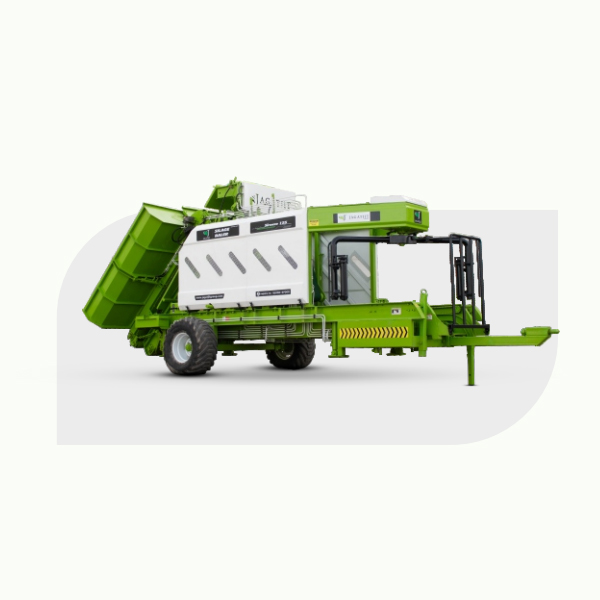

SILAGE BALER
The Jagatjit Sirocco 125 is an advanced silage baler that produces tightly wrapped round bales weighing 100–125 kg. The plastic wrapping ensures compact storage, easier transport, and extended shelf life.
Salient Features & Benefits:
- These wrapped bales also have an extended storage life
- Equipped with premium-grade TR and SKF bearings
Model | SIROCCO 125 |
Weight (Approx. kg) | 4500 |
Working Capacity (Bales/h) | 40–45 |
Tractor (hp) | 35 & Above |
Electric Motor (hp) | 25 kW / Tractor Driven |
L × W × H (mm) | 6350 × 2150 × 2850 |

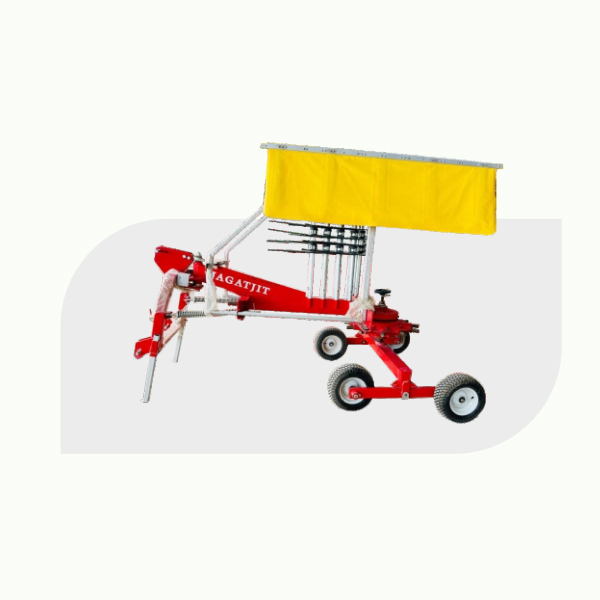

Hay Rake
The Jagatjit Cicoria Hay Rake GR 410 is designed for rapid and careful swathing, handling forage without twisting or entangling to facilitate easier baling. Its light yet sturdy construction allows it to rake larger quantities of hay efficiently, optimizing the harvesting process.
Salient Features & Benefits:
- 2 Pneumatic Wheels for transportation
- Reliable 540 RPM gear box
Model | GR 410 |
---|---|
No. of Arms | 11 |
Working Width (meter) | 88 |
Power Required (kw/hp) | 52/70 |
Weight (kg) | 560 |

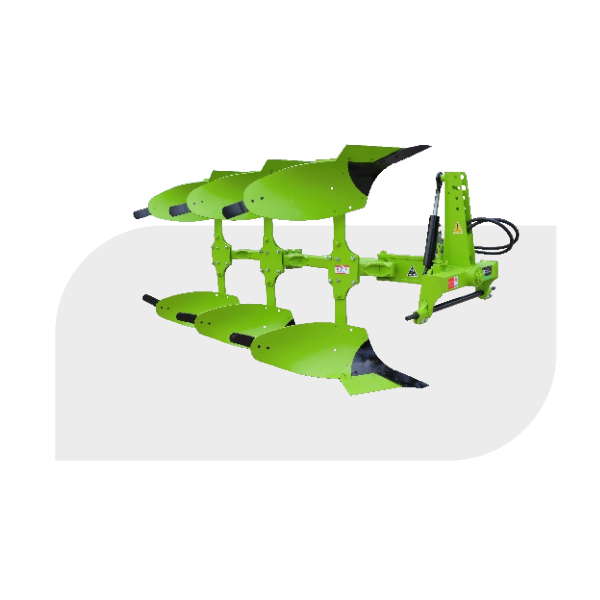

Reversible MB Plough
The plough is used for soil breaking, raising and inversion. Its qualitative robust mainframe gives excellent results in all types of soil functions.
Salient Features & Benefits:
- Lower fuel consumption
- Lesser load to tractor
- Equipped to handle trashy conditions
- Smooth & quick reversing of plough
2 | 2+1 | |
---|---|---|
Working Width (mm) | 600 | 950 |
Weight (Approx. kg) | 415 | 565 |
Mould Board Material | Boron Steel | |
Reversing Mechanism | Hydraulic |

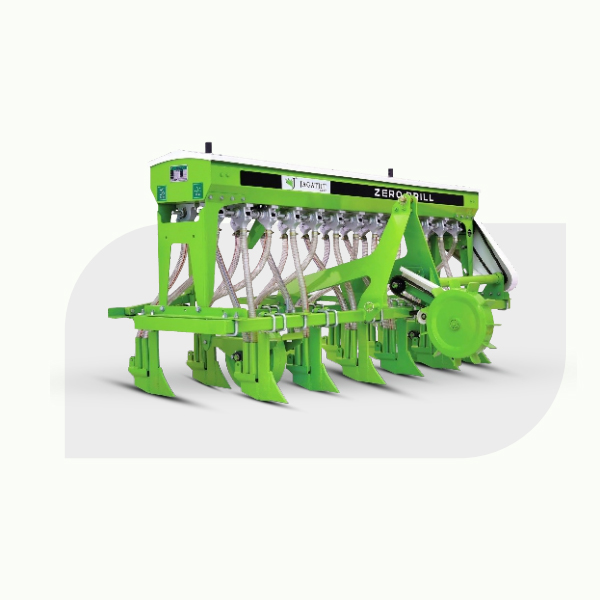

Zero Till Drill
Zero seed drill, the agriculture equipment is used to sow seeds. Apart from that, it improves the fertility of the land and farming productivity.
Salient Features & Benefits:
- Fuel efficient
- Saves irrigation water
- No crust formation after rains
- Improvement in crop yield
11 | 13 | |
---|---|---|
Working Width (mm) | 1915 | 2305 |
Frame Size (mm) | 2255 x 660 | 3580 x 660 |
Ground Wheel Diameter (mm) | 445 |

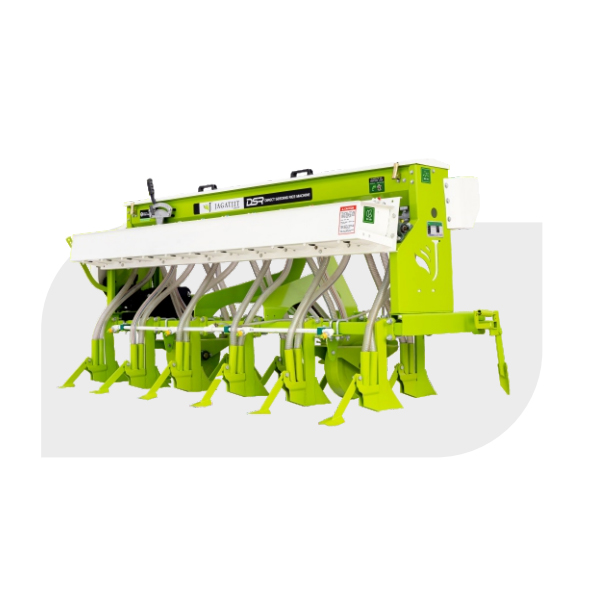

Direct Seeding Rice
DSR Machine is the most technologically advanced and quality tool being used in the fields by the farmers. Its functionality causes less seed waste and better germination.
Salient Features & Benefits:
- Durable & cost efficient
- Proficient functionality
- Better germination and less seed waste
- Easy operations and handling
11 | 13 | 15 | |
---|---|---|---|
Seed Metering | Rotating Discs with cells on its Periphery | ||
Row Space | 9"–12" Adjustable as per Crop | ||
Seed to Seed Distance | 2"–9" Adjustable as per Crop | ||
Sowing Depth | Adjustable (Depth control as per Crop) |

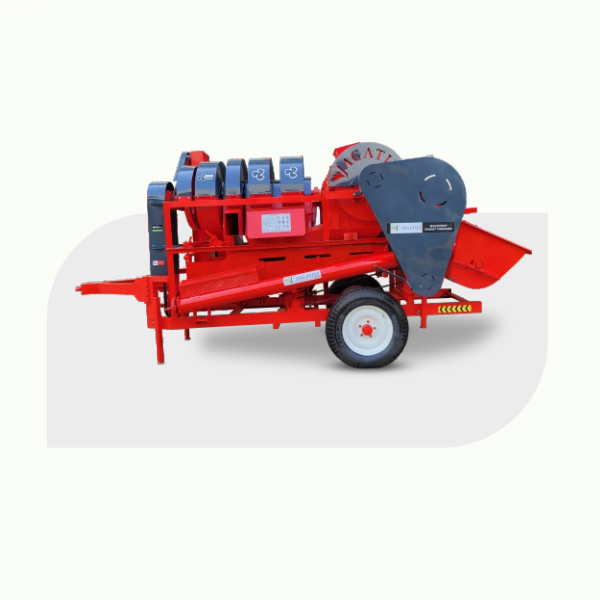

Paddy Thresher
The Jagatjit Paddy Thresher is a robust and efficient agricultural machine designed to streamline the threshing process for paddy crop ensuring minimal grain loss and maximum productivity.
Salient Features & Benefits:
- Six Fans (5+1) arrangement for the cleanest grains
- Dual Flywheel arrangement ensures lesser vibrations
Capacity (kg/h) | 1500–2000 |
---|---|
Tractor PTO–RPM | 540 |
No. of fans | 5+1 |
Weight (kg) | 1670 |
L x W x H (mm) | 5068 x 2128 x 2680 |

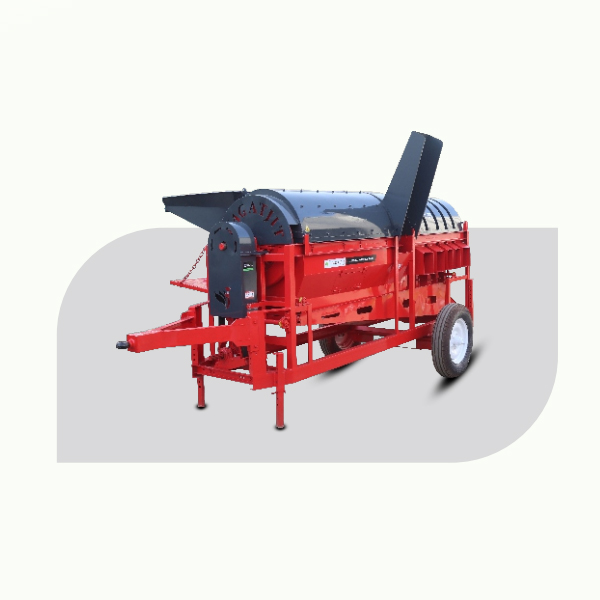

Multi Crop Thresher
The Jagatjit Multi Crop Thresher is a versatile and efficient machine designed for threshing of crops like wheat, gram, soybean, and peas. Engineered for durability, it ensures minimal grain loss and high productivity.
Salient Features & Benefits:
- Compatible with tractors of 40 hp and above
- Heavy cast iron flywheel for better inertia
Type | Multicrop |
---|---|
Tractor (hp) | 40 & Above |
Cutting Blades | 190 |
Note | With air flow adjustment |

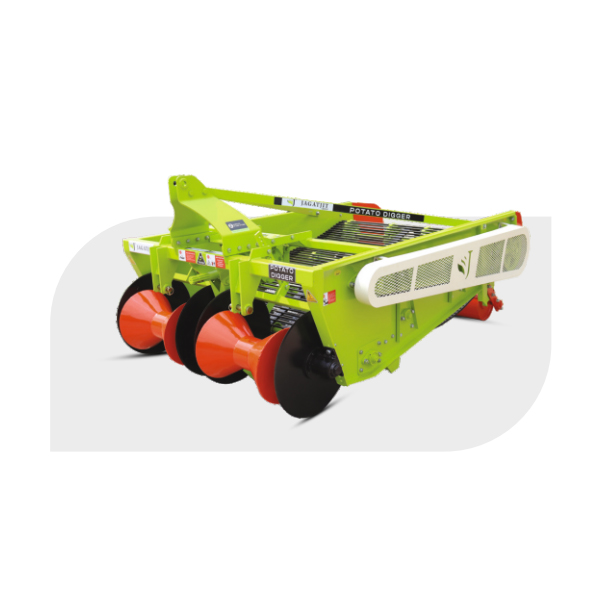

Potato Digger
The Jagatjit Potato Digger is an efficient agricultural implement designed for effective potato harvesting. It is built to minimize damage to the crop while ensuring high productivity and ease of operation.
Salient Features & Benefits:
- It saves time and energy
- Simple to utilize
- 3-point hitch arrangement
- Larger production with fewer labor
Model | JPD57A |
---|---|
Length (mm) | 2835 |
Width (mm) | 1560 |
Height (mm) | 1130 |
Working Width (mm) | 1450 |

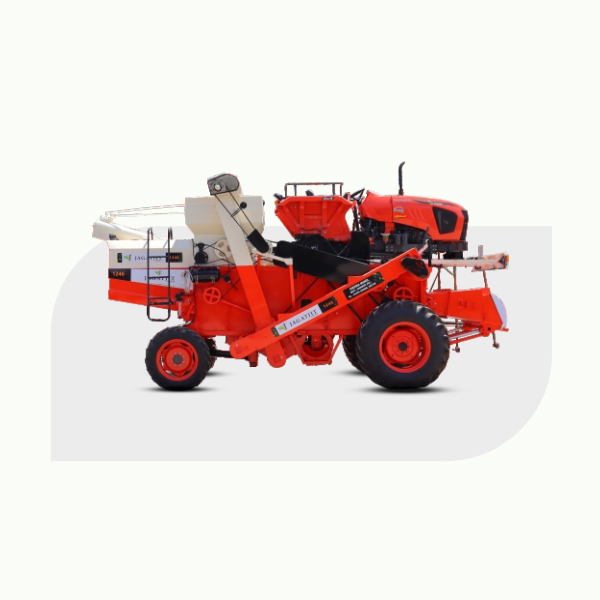

Tractor Mounted Combine
A tractor-mounted combine harvester is an efficient machine that attaches to a tractor, combining cutting, threshing, and cleaning of crops in one pass. It is ideal for small to medium-sized farms, offering flexibility and ease of use.
Salient Features & Benefits:
- It can simultaneously separate the grains from the straws
- It saves time and labour
- It can perform harvesting on a large scale
Type | Tractor Mounted |
---|---|
Weight (Approx. kg) | 5400 |
No. of Straw Walkers | 4 |
Tractor hp required | 45 & Above |
Chassis Size (in) | 46 |

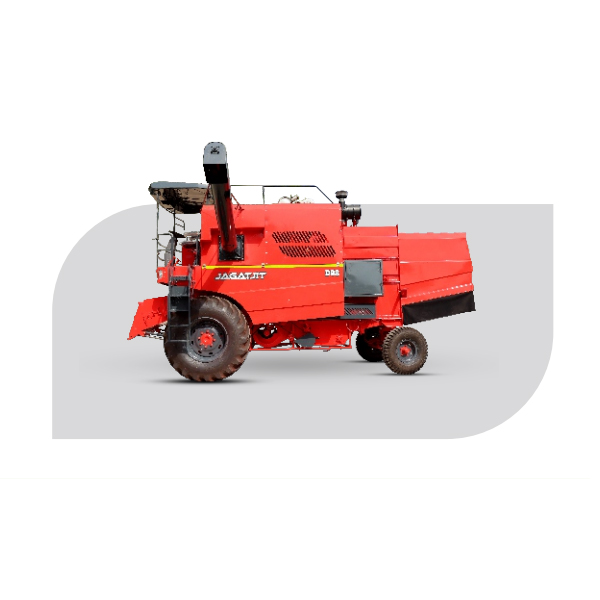

Self Propelled Combine
The Jagatjit D-98 is a self-propelled, wheeled combine harvester, ideally suited for harvesting crops such as wheat, rice, and maize. It is powered by a robust TREM-IV 6-cylinder, 133 hp air-cooled turbo engine, ensuring efficient and reliable performance in the field.
Salient Features & Benefits:
- Suitable for harvesting & threshing
- Grain tank capacity of 2.64 m³ of crops like wheat, paddy, maize etc.
Type | Self Propelled Wheeled |
---|---|
Weight (Approx. kg) | 9150 |
No. of Straw Walkers | 5 |
Working Capacity (Acres/hr.) | Wheat: 4.5 Paddy: 4 |

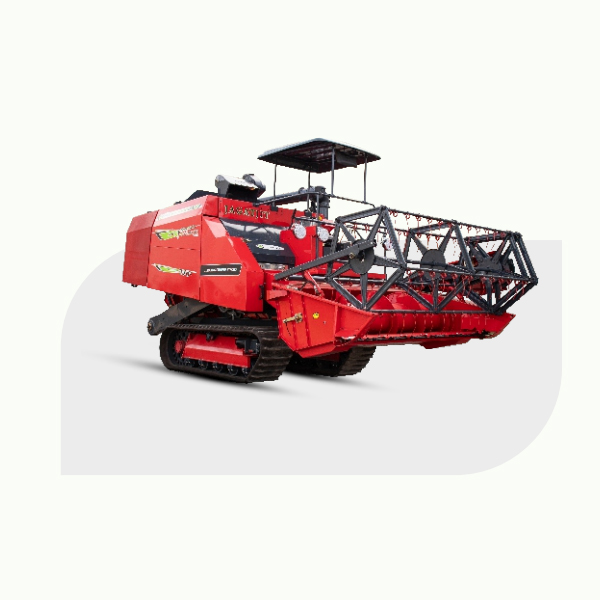

Track Combine
Jagatjit TAF is a versatile track combine equipped with Tangential Axial Flow threshing system for clean grain separation of paddy crop with minimum grain loss.
Salient Features & Benefits:
- 62 hp air cooled 4 cylinder engine
- 1210 litres of grain tank storage
- 7 feet wide cutter bar
Type | TAF - Track Type |
---|---|
Weight (Approx. kg) | 4400 |
Chassis (in) | 31 |
Fuel Tank Capacity (litres) | 100 |
L x W x H (mm) | 5810 x 2560 x 3020 |
